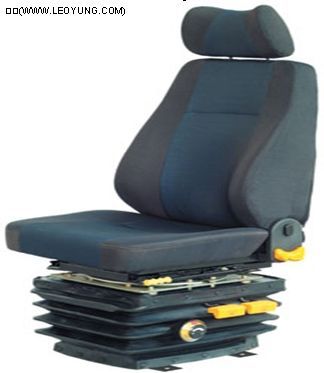

XFZY-8D

1. Height (center, headrest in lowest position) 1270mm Headrest/Seat Arms/Safety Belt
2.Cushion Width 510mm
3. Backrest Width 480mm
4. Surface Height(center) 480mm
5. SIP Point To the Front 330mm To the Bottom 510mm
6. Headrest Adjustment Range (Angle、Height) 80°、75mm
7. Backrest Adjustable Angle Front 80°、Back 50°
8. Front to Back Adjustable Distance 175mm
9. Height adjustment Distance 60mm
10. Skin Material PVC synthetic leather or fabric
11. Installing Hole Size 330*314*4-φ10.5
12.. Surface Angle Range ±12°
13. Shock Damping Mode Mechanical Damping
14. Damping Device Stroke 60mm
15. Weight Adjustable Range 50kg-130kg
16. Cushion and backrest can be revolved 360° (45°/gear)
