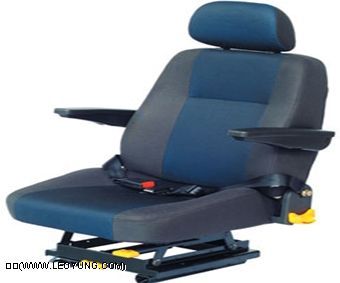

KTZY-2

1. Height (center) 980mm Headrest/Seat Arms/Safety Belt
2.Cushion Width 510mm
3. Backrest Width 490mm
4. Surface Height 260mm
5. SIP Point To the Front 340mm To the Bottom 300mm
6. Headrest Adjustment Range (Height) 75mm
7. Backrest Adjustable Angle Front 80°、Back 50°
8. Front to Back Adjustable Distance 175mm
9. Skin Material PVC synthetic leather or fabric
10. Installing Hole Size 235*280*4-φ9
11. Arms are adjustable (ordinary)
12. Front and Back of surface adjustment range up: 23mm, down: 37mm,
13. Surface Angle Range Front and Back:13° ±2°
